DEUTA Head Up Display

Important travel data at a glance - With IconTrust^® DMI safety

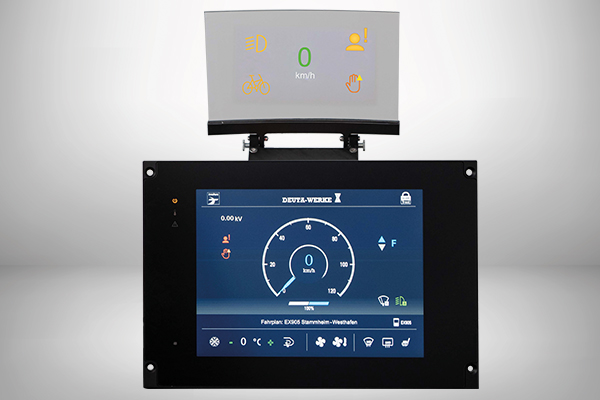

Head-Up Displays are state-of-the-art-technology in automotive and aviation. DEUTA developed a Head-Up Display solution for railway vehicles, presenting forward travel information from the driver machine instruments onto a combiner display in front of the vehicle windshield upgraded with IconTrust^® safety up to SIL2.

Advantages

All safety information at a glance!
Improvement of safety- The view angle of the driver keeps unchanged
Highest quality: brightness, contrast, colour scale

One generic HUD platform for all railway projects

Finding the best Head-Up Display position - even in narrow installation spaces is a complex challenge
in new and refurbishment railway vehicle projects. DEUTA designed a generic HUD platform, combining
flexible installation options, advanced safety and more operating and driving comfort in a compact space-
saving design. The Head-Up Display architecture fits even in narrow drivers desks.

Improvement of safety

The most important information are mirrored parallel at the Head-Up Display combiner surface. The driver keeps continuously the visual axis between the Head-Up Display and the track. The Multifunctional Terminal communicates via the vehicle computer and generates the information for the Head-Up Display without changing the vehicle architecture.

HUD & IconTrust^® = SIL2

In combination with an IconTrust® Multifunctional Terminal the DEUTA Head-Up Display can reach a safety level up to SIL2. IconTrust® monitors dedicated areas on the TFT panel and differentiates between safety related and non-safety related information.
