CHM84 — crashworthy event recorder memory module

Compact crashworthy memory for event recorders and recording systems.

CHM8X Brochure (PDF) Specification package

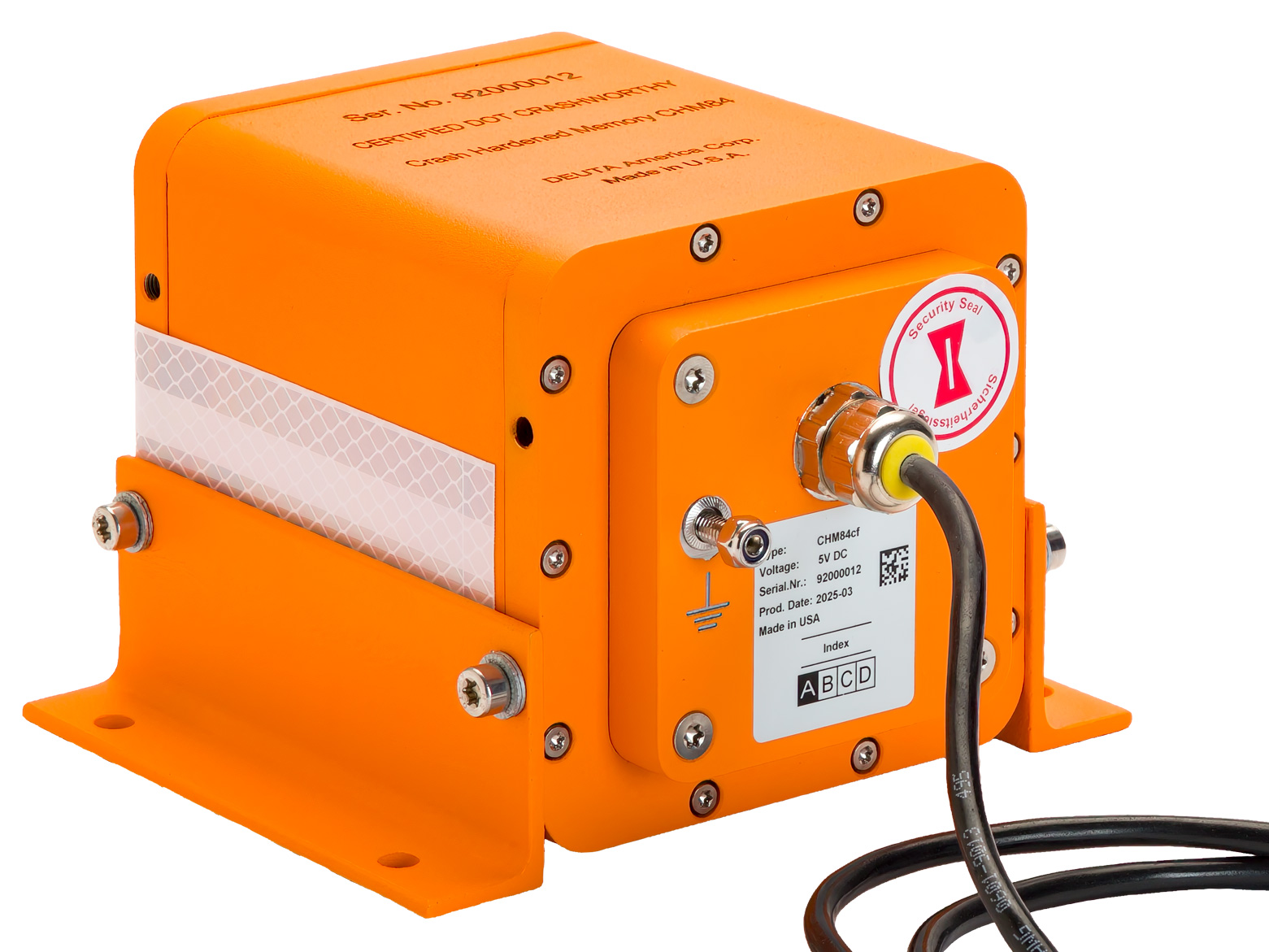

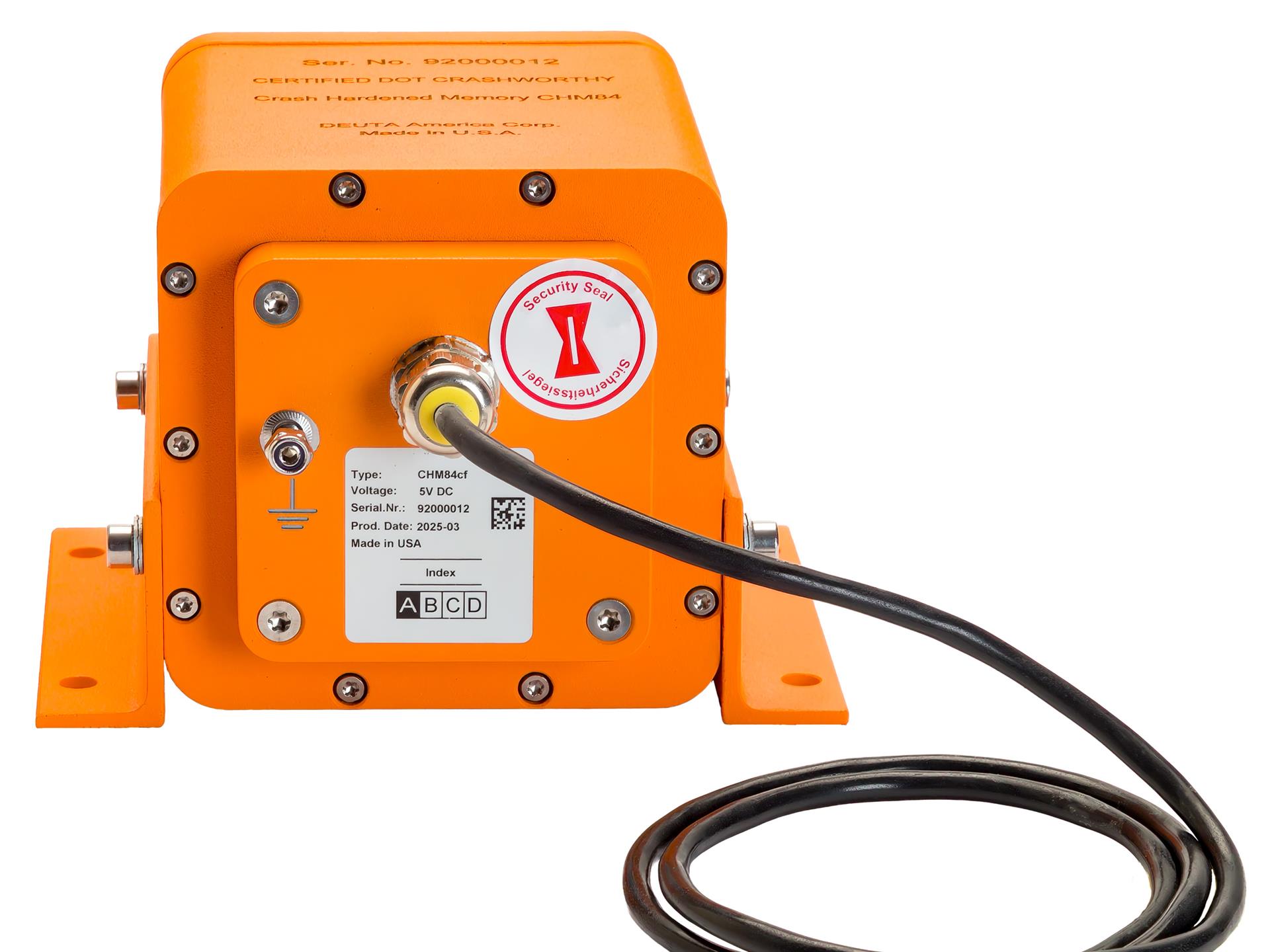

It is small and light enough to be mounted inside an event recorder, in a 19-inch rack, or inside a network video recorder, or used standalone with a bracket set. The interface is USB 2.0, supplied by default with a 45 cm or 90 cm USB cable and an M8 4-pole connector; other lengths and connectors are available.

At a glance

Standard: IEEE 1482.1-2013, FRA 49 CFR 229
Capacity: 16 GB to 128 GB
Interface: M8 USB 2.0, 4-pole
Usage: Data
Power: via USB
Weight: 3.3 kg housing, 4.1 kg with brackets
Manufactured: USA - FTA Buy America compliant

IEEE 1482.1-2013 and FRA 49 CFR 229 certification

Crashworthiness and fire testing were performed by DTC Dynamic Test Center AG, ISO 17025 accredited under STS 0492. Fire testing was carried out on the two largest capacities, 64 GB and 128 GB, which covers the smaller variants. EN 50155:2021 testing was completed by the DEUTA-WERKE type test laboratory.

IEEE Std 1482.1-2013 §4.6	Crashworthiness, and with it the 1999 edition criteria
FRA 49 CFR 229, Appendix D	Certified crashworthy ERMM, Section C, Option A
IEC 62625-1:2013	Magnetic field, §4.3.1.7
EN 50155:2021	Electronic equipment on rolling stock
EN 45545-2	Fire behaviour of materials

Capacity

Offered at 16, 32, 64 and 128 GB.

Made in the USA

All CHM Modules are Manufactured in the USA - FTA Buy America compliant

Mechanical

Parameter	Value
Width	102.7 mm (4.0 in)
Height	102.7 mm (4.0 in)
Depth	170 mm (6.7 in)
Weight	3.3 kg housing; 4.1 kg with brackets
Operating temperature	-40 °C to +85 °C
Storage temperature	-40 °C to +85 °C
Connection	90 cm USB cable with M8 4-pole connector

Mounting and variants

Sold with 19" rack mounting parts and with bracket sets of several sizes. Mounting parts have no bearing on the certification.

Comparison

Where the system communicates over Ethernet rather than USB, or where video capacity is needed, see the CHM86.
