IconTrust® HMI

Digital functional safety up to SIL 3

IconTrust® HMI

Safety starts at the operator panel

Many systems for control and operator stations focus exclusively on protecting the electronic process control computer. However, this often leaves a critical safety gap unaddressed: the digital displays. Faulty or tampered data on displays cannot be verified in real time by on-site operating personnel or during operation – a risk to the entire plant.

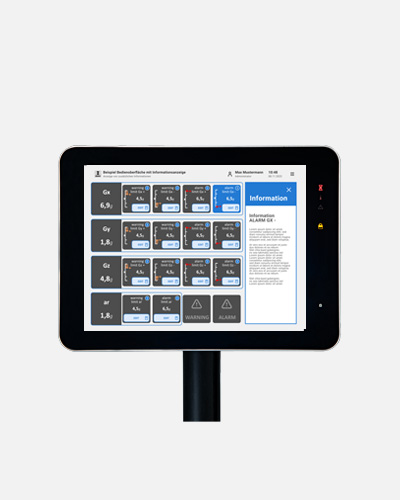

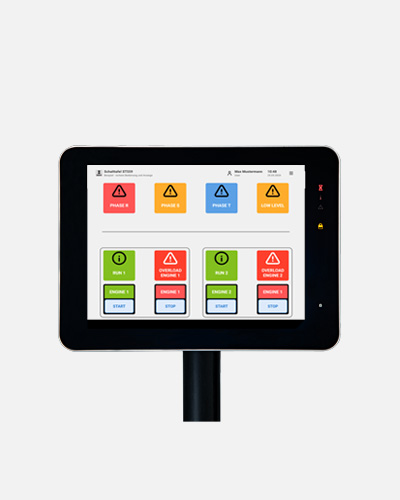

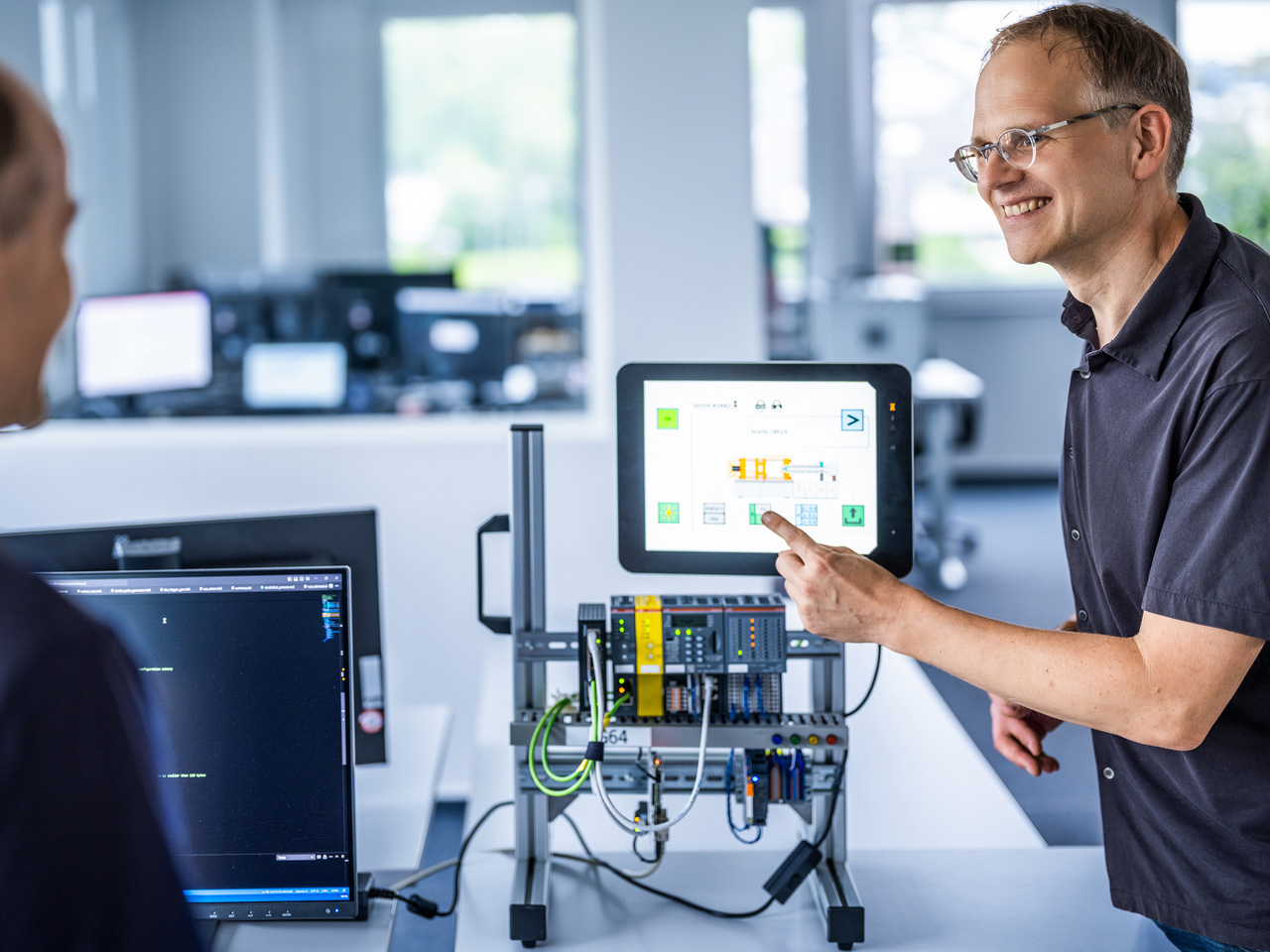

With IconTrust® HMI, you can configure interactive indicator lights and pushbuttons in no time via a web browser. The control and display elements are presented in a dynamic tile layout on the HMI. The new control units are reconfigured remotely on the HMI.

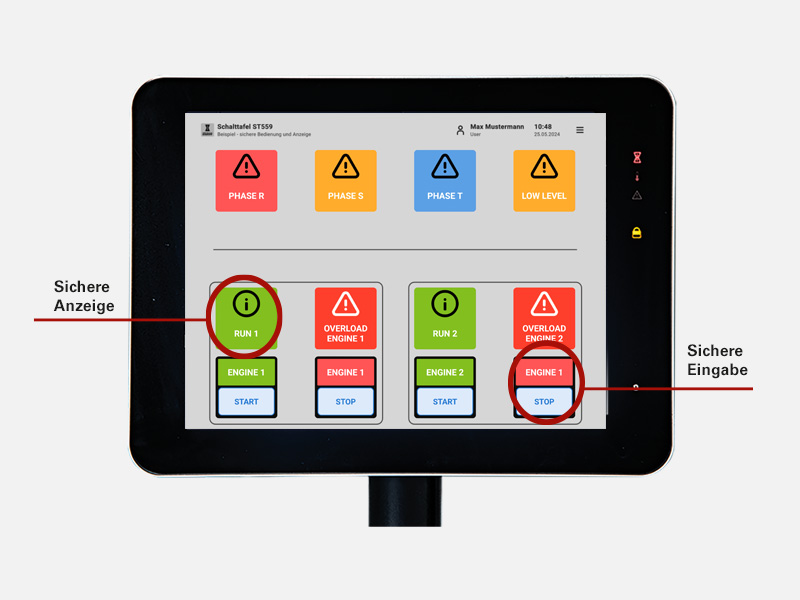

A typical IconTrust® HMI application is the representation of digital control panels with SIL requirements. Whilst hard-wired control panels involve numerous steps to set up and project changes are time-consuming and costly, IconTrust® HMI represents digital control panels with a safety level up to SIL3.


 DEUTA IconTrust® HMI

  • 12" TFT monitor, 1024x768
  • IconTrust® display SIL3
  • SelectTrust® input SIL2 (touch)
  • PROFIsafe V2.4, V2.6.1
  • Visualisation with web-based configuration
  • 20 SIL display and input fields per screen page
  • Various screen pages
  • Display non-safe content (HTML5)

Example applications





Typical applications - IconTrust® HMI

  • Matrixpanel
  • Operating mode selection, recipe selection, batch selection
  • Process value display and input
  • Alarm lists
  • Standard Operating Procedure, step sequence
  • Maintenance Override Switch (MOS)
  • Hybrid operation (Non-SIL and SIL)

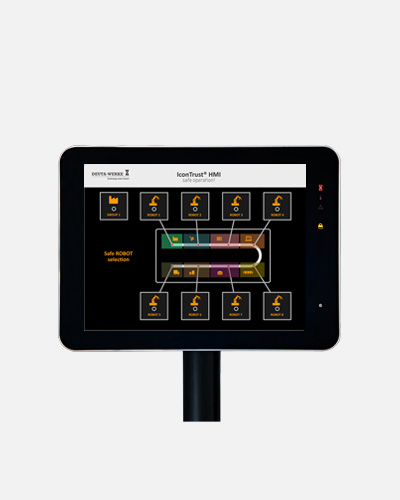

  • Safe 1-out-of-N selection
  • Context-sensitive operation
  • Language selection

Secure visualisation of critical process data

The IconTrust® HMI enables digital functional safety up to SIL3 and reliably monitors defined areas on the TFT display to ensure the content is correct. The technology clearly distinguishes between valid and invalid information.

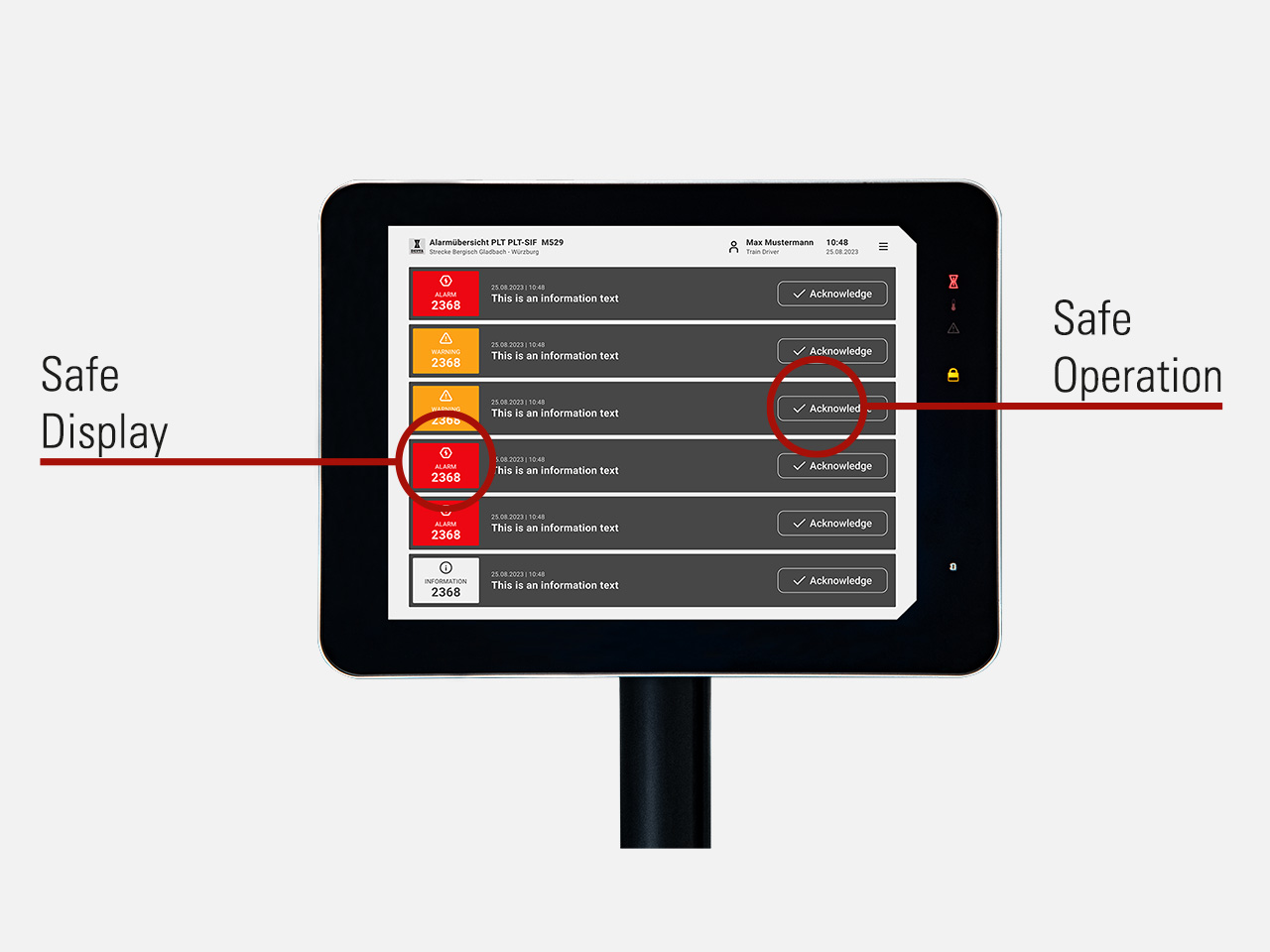

Safety-related display and control elements such as indicator lights, pushbuttons or text fields can be configured on the user interface in a matter of moments. IconTrust® technology monitors display and input areas independently of the standard PC system.

For each defined area, the image actually displayed is analysed in every refresh cycle and compared with the corresponding input value. In the event of discrepancies, IconTrust® immediately triggers a safety-related response.


Digital control panels – functionally safe and flexible

Traditional control panels provide the necessary safety level for functionally safe display and input in safety control systems.

However, this approach comes at the expense of time, adaptability and efficiency in all project phases:

  • Design decisions made early on can only be changed later at considerable expense
  • Even minor adjustments require scheduled maintenance windows
  • Control elements must be checked regularly during operation
  • Project changes cause additional costs and delays

Digital, flexible – and safe up to SIL 3

The IconTrust® HMI is based on a high-performance panel with a brilliant TFT display.

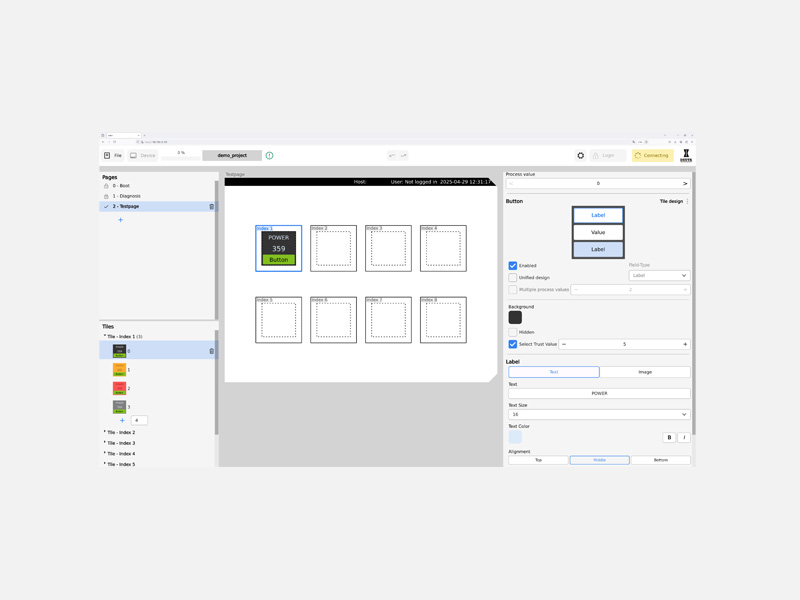

Indicator lights and pushbuttons are configured via a web browser using software and can be flexibly adapted to specific project requirements.

Your benefits:

  • Functional safety up to SIL 3
  • Quick configuration via web editor
  • Remote reconfiguration of new control units
  • Elimination of time-consuming and costly retrofitting measures
  • High adaptability throughout the entire lifecycle


This is how digital control panels combine maximum safety with the flexibility of modern software architectures.




Three steps to a secure HMI interface

The safe display and control elements can be configured in a web browser in no time at all and customised in a variety of ways to suit specific projects. This eliminates time-consuming and costly steps when project changes are required. The new control units are reconfigured remotely via the IconTrust® HMI.

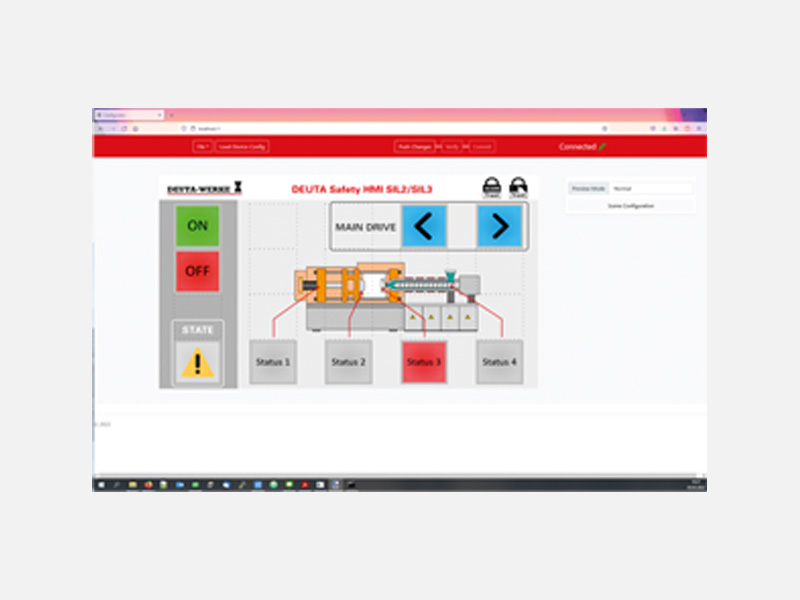

1. Intuitive user interface

Users can customise the interface as they wish:

  • Place elements freely on the interface
  • Customise text, icons and colours to suit your needs
  • Design each button and field as required
Intuitive Bedienoberfläche

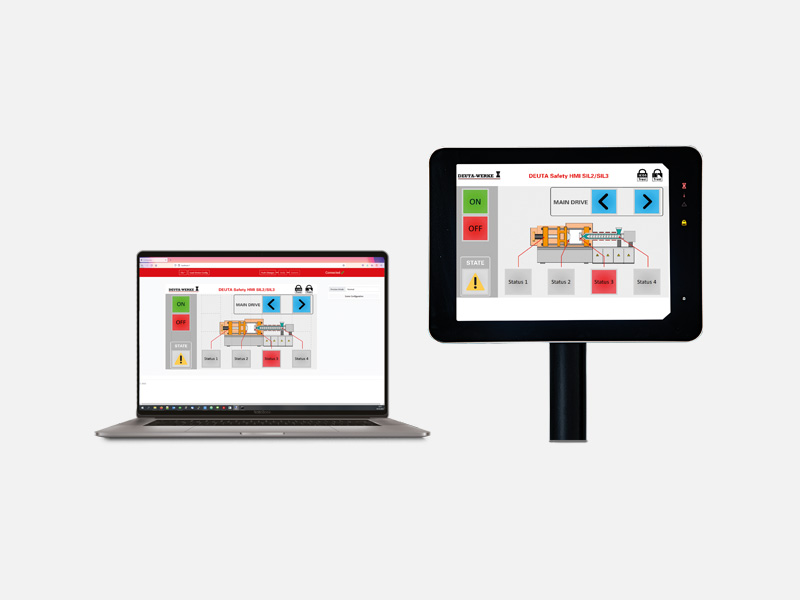

2. Transfer and generate

  • Transfer data directly from the browser to the IconTrust® HMI

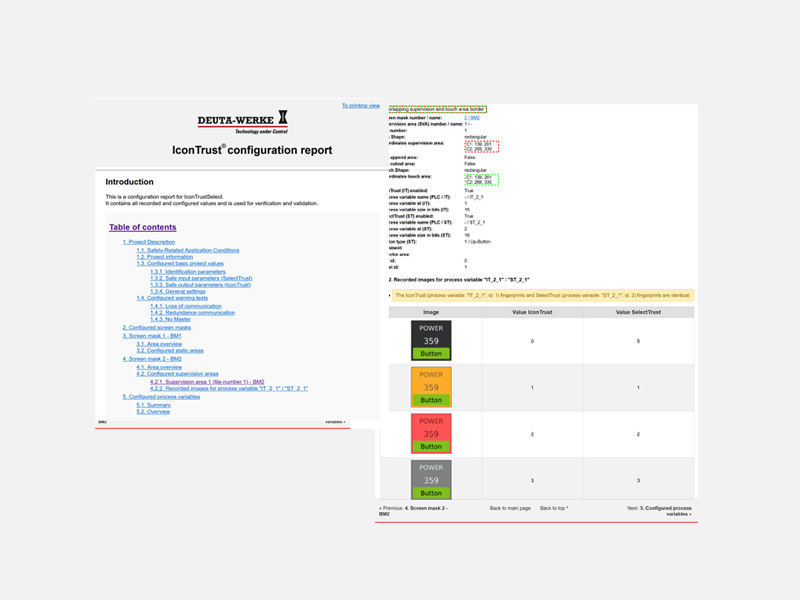

  • Automatically generate configurations and reports using T2/T3-qualified tools
  • Reports for verification and documentation are available immediately
2. Übertragen und Erzeugen

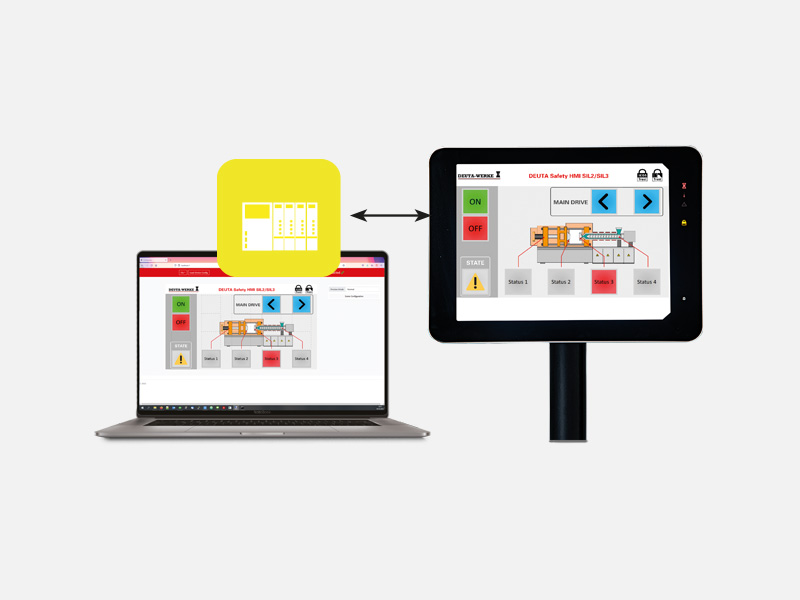

3. Integrate

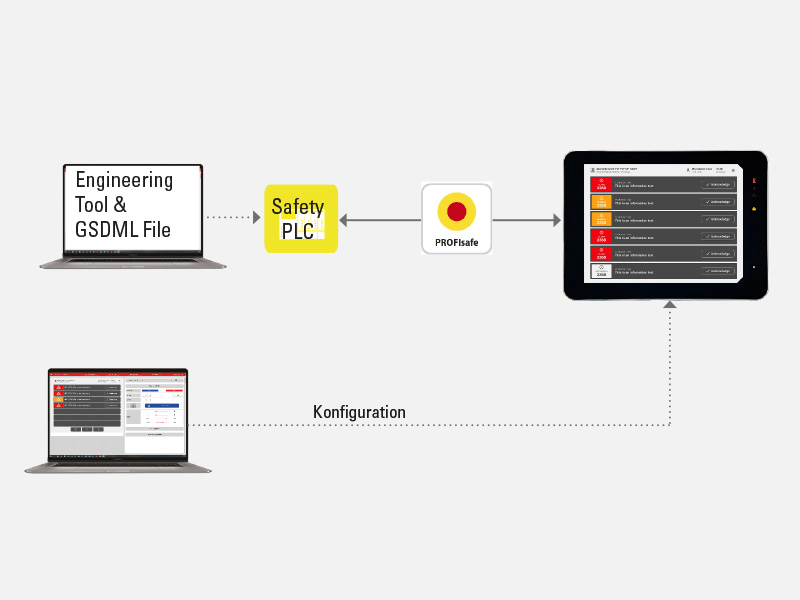

  • Connect all HMI panels to the safety controller via PROFIsafe
  • Seamless integration into the plant control system
3. Integrieren

The secure IconTrust® HMI technology is certified up to SIL3

  • In accordance with EN 50128, EN 50129
  • In accordance with IEC 61508
  • In accordance with PROFIsafe

Ongoing certification for the IconTrust® HMI

  • IEC 61508
  • PROFINET / PROFIsafe
  • IEC 62443-4-2 SL-1

With Time and Cost Savings

IconTrust® Safety
  • Generic use HMI use for all applications
  • No manual availability check required (“lamp test”)
  • Proven technology – in use for over 15 years
  • Long-term reliability through use in the railway sector
Security
  • IconTrust® brings together all safety measures
  • Easy integration into a zone and cable routing concept in accordance with IEC 62443
  • Linux-based system
  • No access to IT or internet networks required
  • Developed in accordance with IEC 62443-4-2
  • Safety level: SL 1
  • (SL 2 with LDAP support planned for a later date)
  • Diverse and separate from visualisation and the system
  • Software or operating system updates without affecting safety
Project planning / Engineering
  • Via web browser; no separate software required
  • Quick re-planning and rescheduling without the need for removal and reinstallation
  • Easy creation of a configuration library
  • Easy replication to additional devices (redundancy, replacement)
Cost-effectiveness
  • Simplified recruitment for operator roles
  • A larger pool of potential operators
  • Reduced training requirements thanks to SIL-compliant operating instructions
  • No HMI maintenance required thanks to comprehensive technical monitoring
  • No ‘lamp tests’ or functional checks required throughout the entire service life
  • Easy replacement in the event of a fault
  • Safety not tied to specific devices
  • Adaptation of HMI content to changing requirements throughout the service life (10+ years)
Flexibility
  • Fields can be freely assigned and displayed
  • Decoupling of ‘hardware’ (cabling) and ‘software’
  • Flexible design of screen content and HMI interactions
  • Quick switching between revision versions or variants
  • Changes can be applied remotely; no rewiring or reassembly required
  • Non-SIL content can be changed at any time without affecting safety
Long-term availability
  • IconTrust® has been in active use for over 15 years
  • Long-term supply commitments in the railway sector
  • Expertise in the field of safety
  • A strong focus on quality due to the nature of railway products
  • High level of vertical integration
  • Replacement available on request, adhering to the ‘form, fit, function’ principle
  • Same configuration, on modernised hardware if required

Safety configuration – In just a few minutes

The graphical user interface is designed using the web editor provided. This is designed to be user-friendly and allows for quick, intuitive setup – even without in-depth technical knowledge.

Your benefits:

  • Intuitive user interface
  • Quick setup
  • No programming knowledge required
  • Efficient customisation of the user interface

Toolchain – Automated safety configuration for your HMI

Das IconTrust® HMI erzeugt mithilfe einer qualifizierten Toolchain automatisch eine zur grafischen Oberfläche passende Safety-Konfiguration inklusive zugehörigem Report.
So wird sichergestellt, dass Visualisierung und Sicherheitslogik konsistent aufeinander abgestimmt sind.

Übertragbarkeit & Skalierbarkeit
Die erstellte grafische Oberfläche kann problemlos auf weitere HMIs übertragen werden. So werden:

  • Verfügbarkeit erhöht
  • Wiederverwendbarkeit sichergestellt
  • Integrationsaufwände reduziert
  • Skalierung in Serienprojekten erleichtert

The IconTrust® HMI uses a qualified toolchain to automatically generate a safety configuration that matches the graphical user interface, including the associated report.
This ensures that the visualisation and safety logic are consistently aligned.

Portability & Scalability
The graphical user interface created can be easily transferred to other HMIs. This:

  • Increases availability
  • Ensures reusability
  • Reduces integration effort
  • Facilitates scaling in series production projects

Many control and operator console designs primarily protect the process control computer; digital displays often remain unprotected. The digitalisation of functional safety using the IconTrust® HMI is revolutionising the process industry.

Dr. Oliver Schwaneberg
Head of IconTrust® HMI Development, DEUTA-WERKE GmbH
IconTrust® HMI

IconTrust® HMI

Product brochure

pdfx, 920 KB
