Indicator units for rail vehicles

Safe. Suitable for rail transport. Tailor-made.

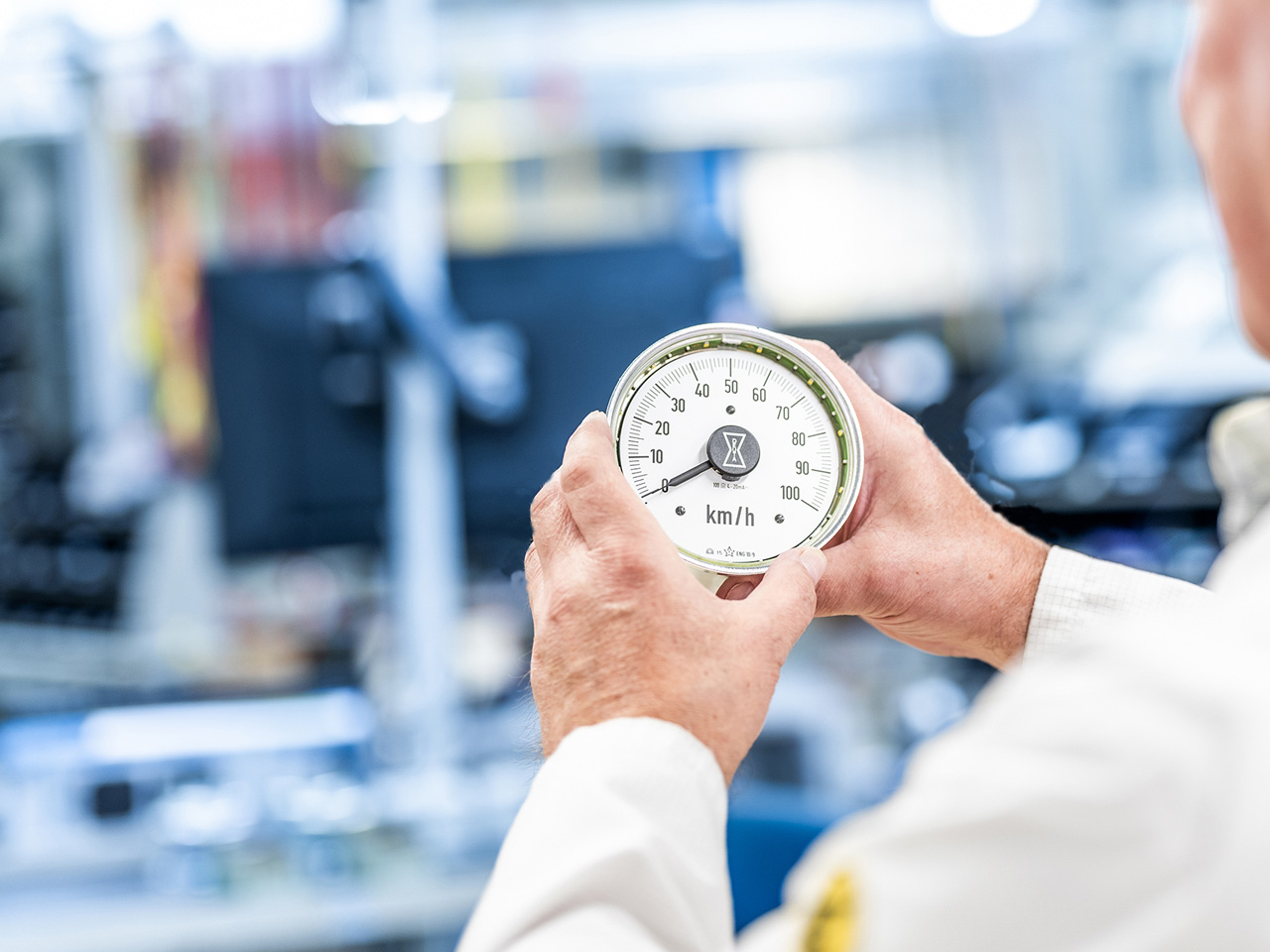

DEUTA’s analogue railway-approved indicator units

Depending on the application, analogue indicators for railway vehicles are divided into eddy current, moving coil, and stepper motor types. But each type has three things in common – reliability, precision and high availability.

DEUTA supplies tailor-made analogue panel-mounted instruments for a wide range of applications. All models offer the highest level of safety, precise readings and exceptionally high reliability.

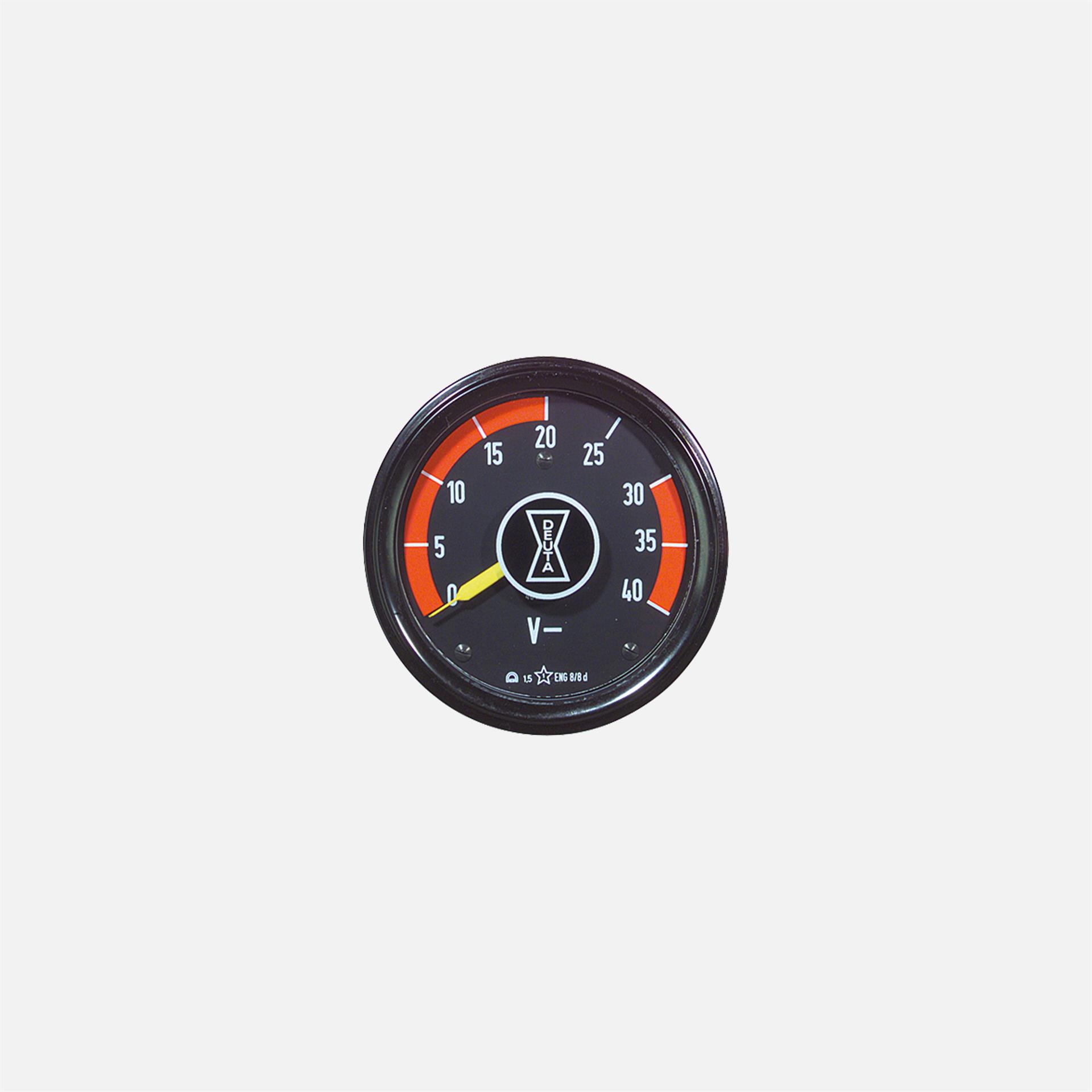

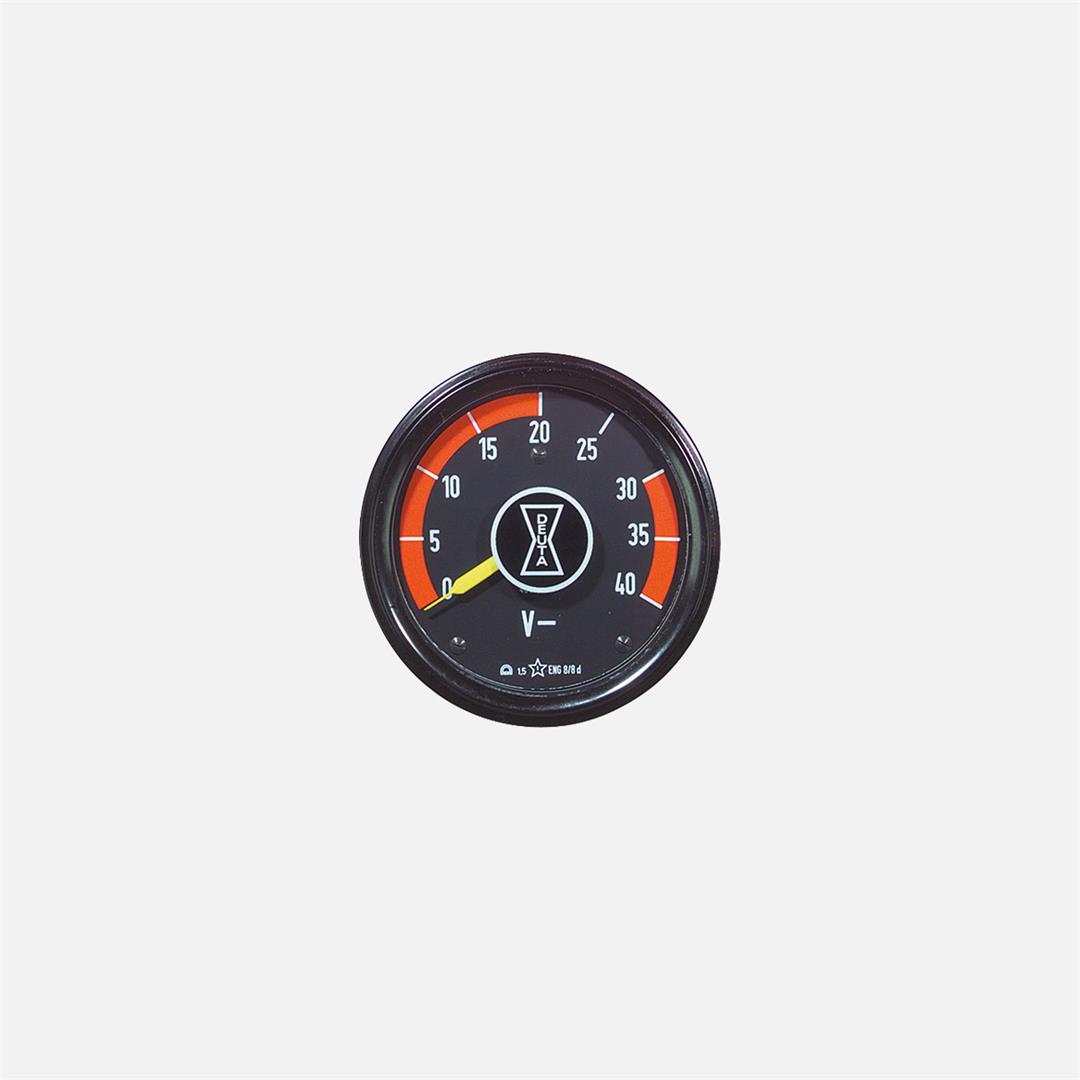

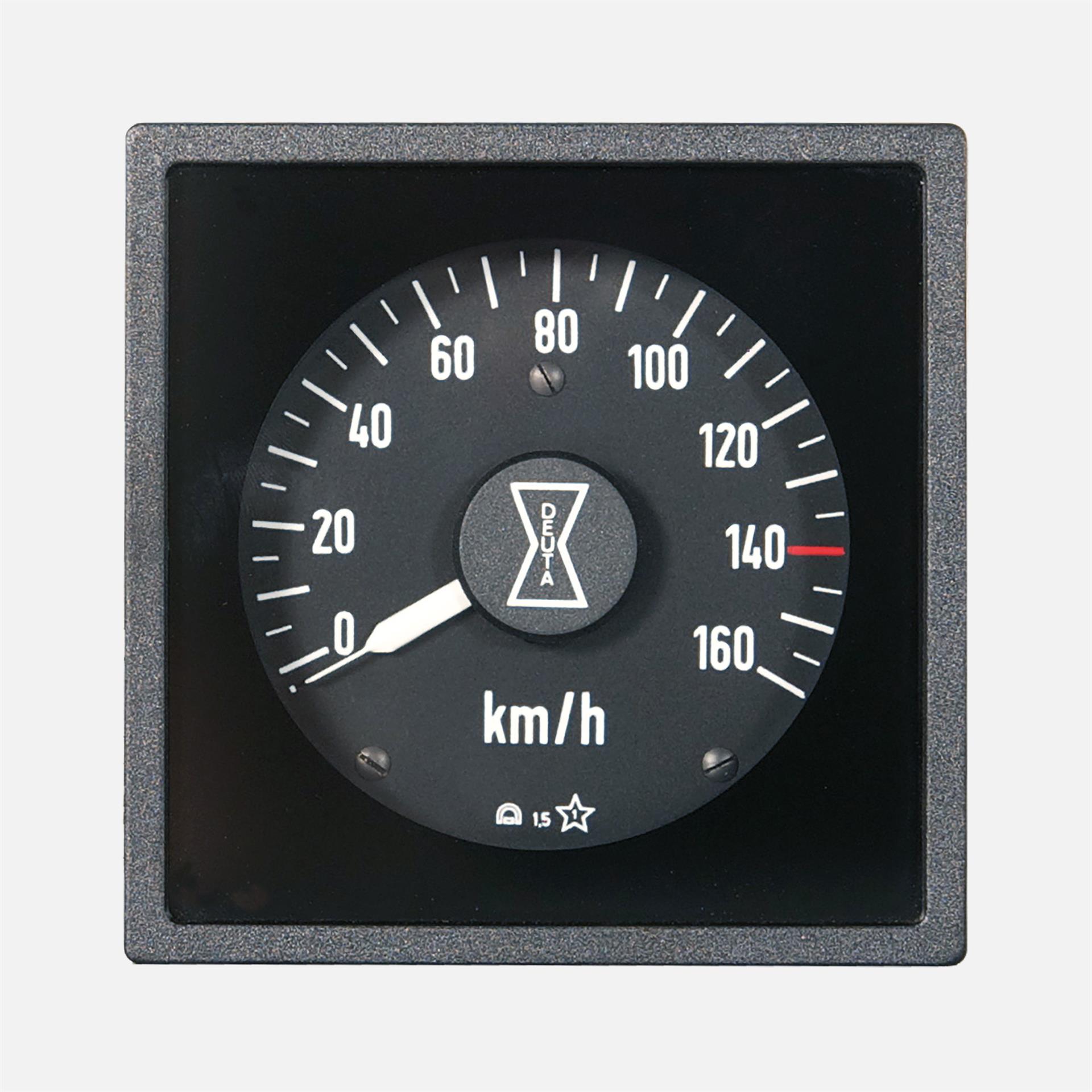

DEUTA’s analogue indicator instruments have proven their worth over decades in a wide variety of applications. Our range includes round (ENG) and square (EQG) instruments with a 240° scale, as well as numerous specialised devices. The entire range of panel-mounted instruments is compatible with the mounting dimensions specified in DIN 75501.

Flexible for any input value

Whether current, voltage or pulse-width-modulated signals: DEUTA’s display units process a wide range of input signals. Thanks to their integrated electronics, virtually any desired physical quantity can be displayed reliably.

Analogue meters with extended functions

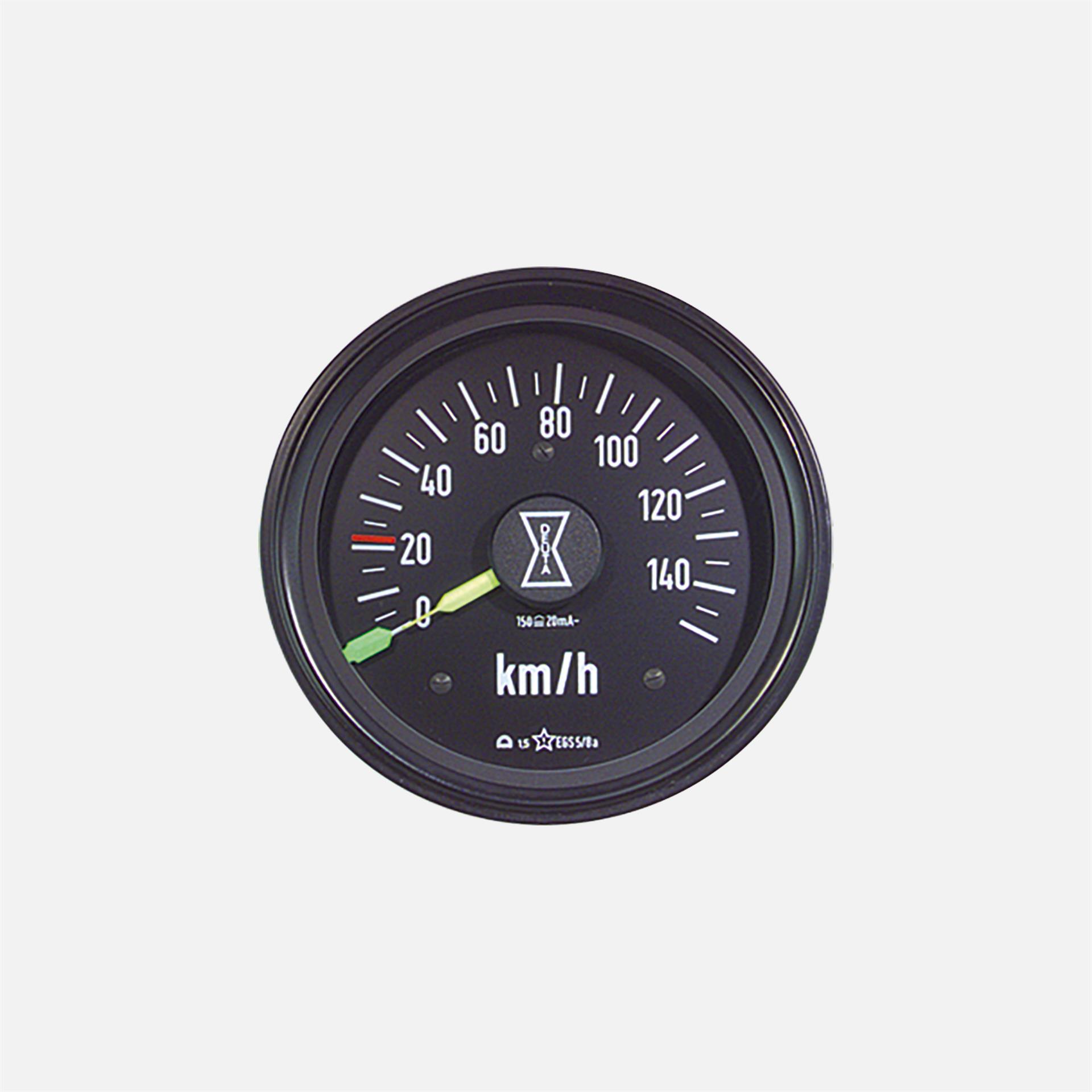

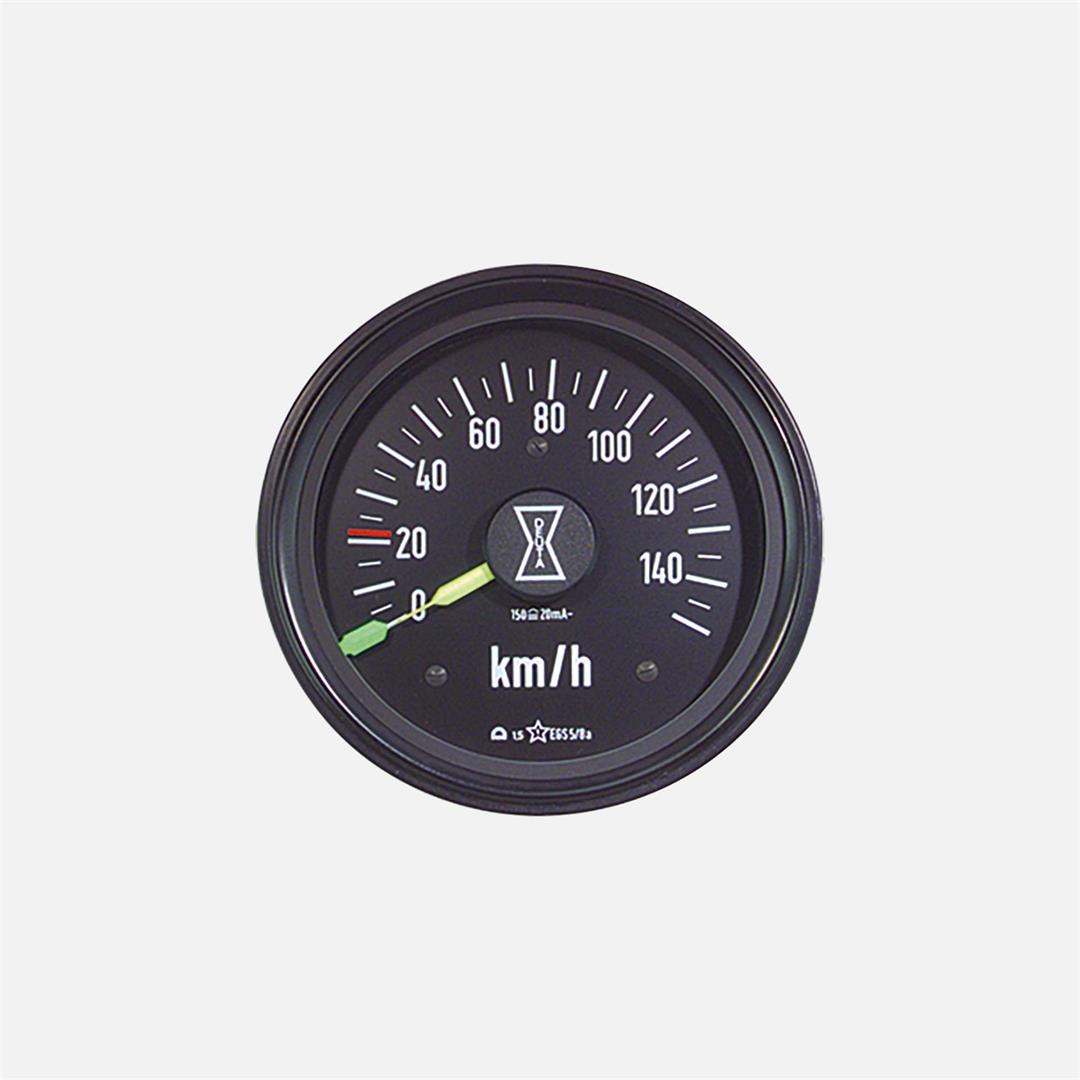

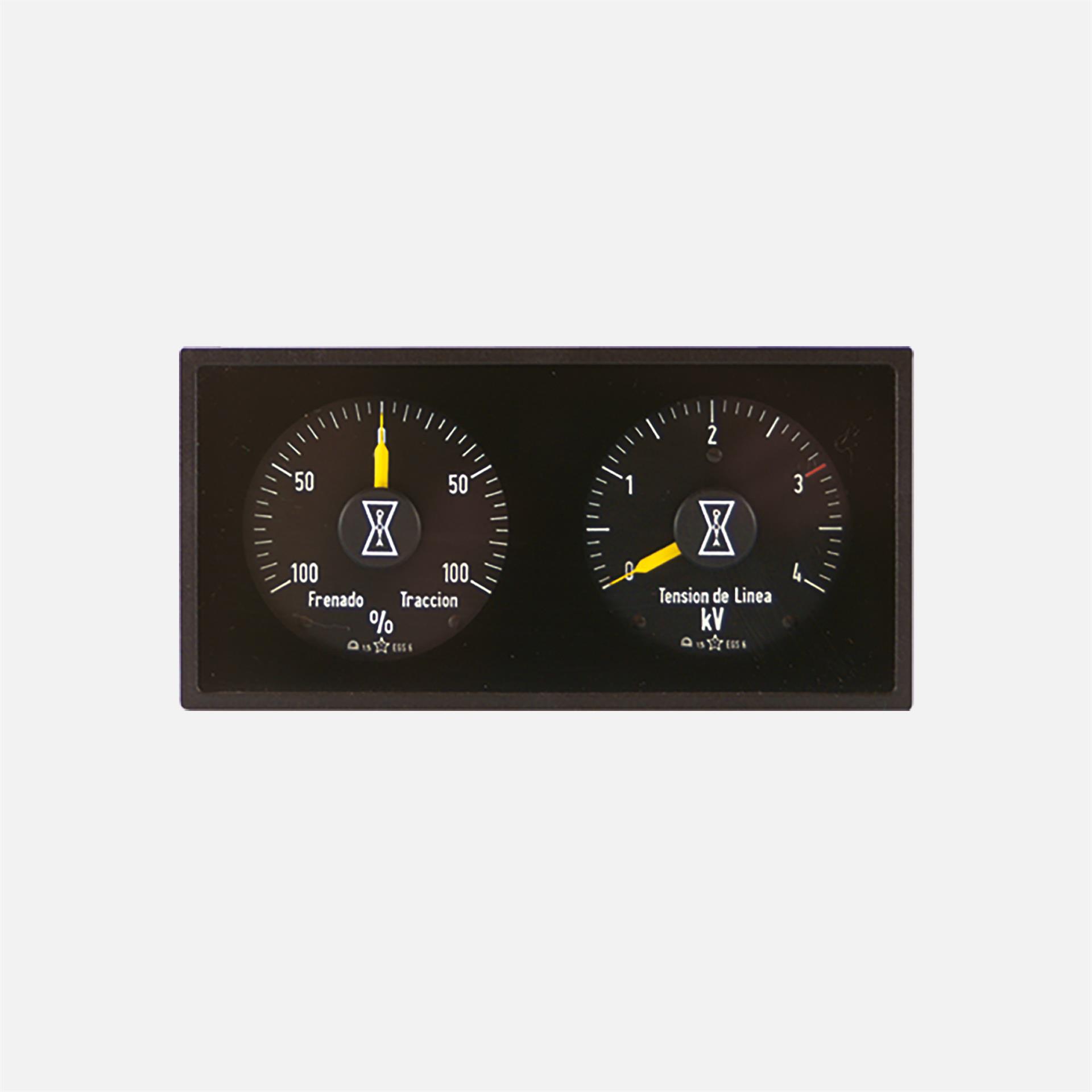

The range of DEUTA display units is complemented by special instruments such as dual-scale meters (EGS) with a wide variety of additional options. Round dual-scale meters are available in 100 mm and 130 mm sizes, as well as square dual-scale meters in 96 x 96 mm. Also in the product range: a dual display with measuring mechanisms arranged side by side (EGS6, 96 x 192 mm).

Analogue panel-mounted instruments from DEUTA comply with the following standards, amongst others:

EN 50155 (Railway standard)
EN 61373 (Vibration)
EN 60051 (Accuracy)
EN 50121 (EMC)

Individual indicator design for rail vehicles:

Customisable
Colour scheme (front panel, scales, hands, lettering)
Scale graduations
Luminous paint, button illumination
Various additional functions
Optional inclusion of the customer’s logo
Additional text

Modular concept for customised dashboards

Good to know: As DEUTA’s analogue display units are designed as a modular system, it is possible to produce almost any customised version. This applies to:

Input parameters (current/voltage, AC/DC)
Lighting (incandescent bulb or LED)
Colour scheme (scale, pointer, printing)
Scale division
Multiple measuring ranges
Luminescent paint
Increased accuracy class (up to 1%)
Movement modifications

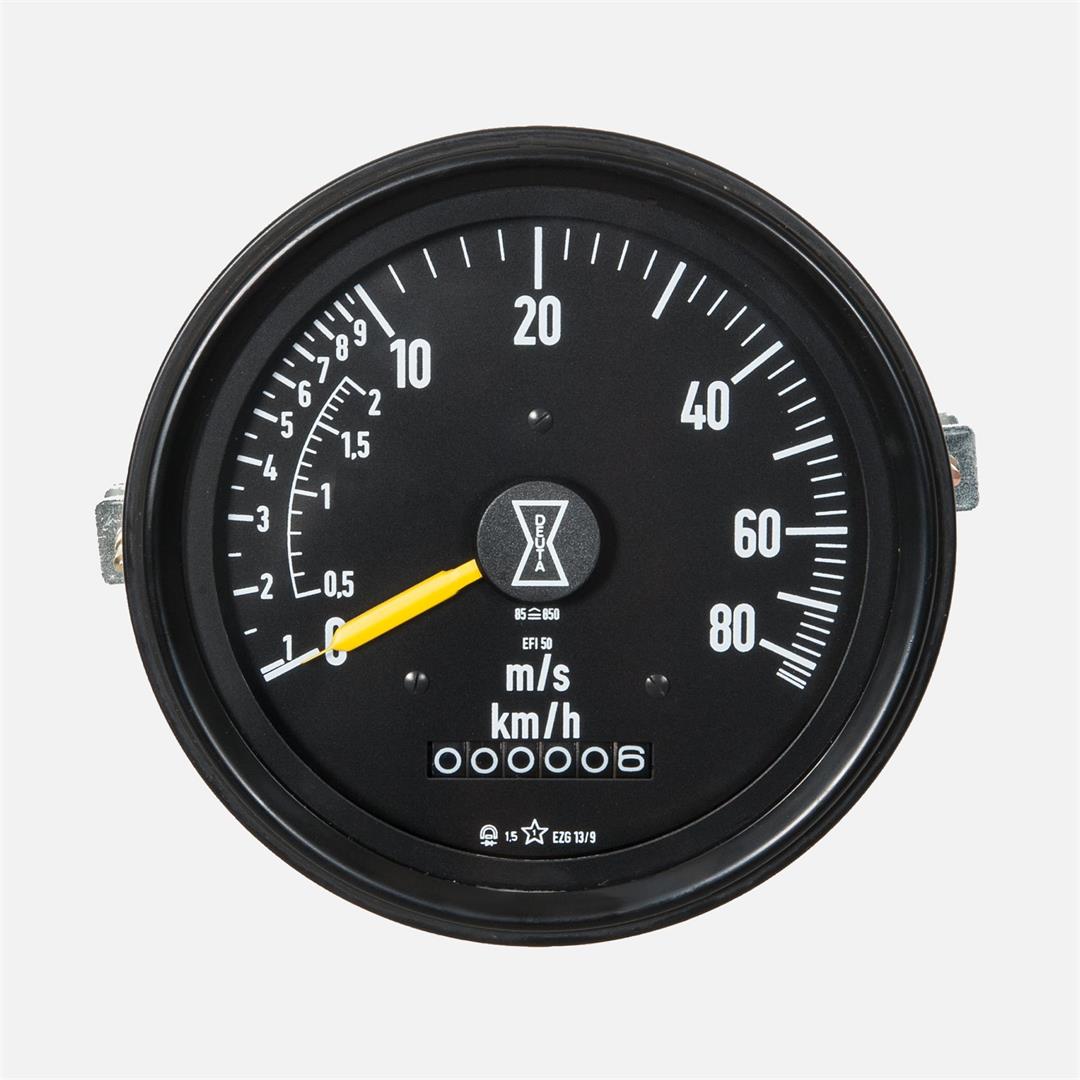

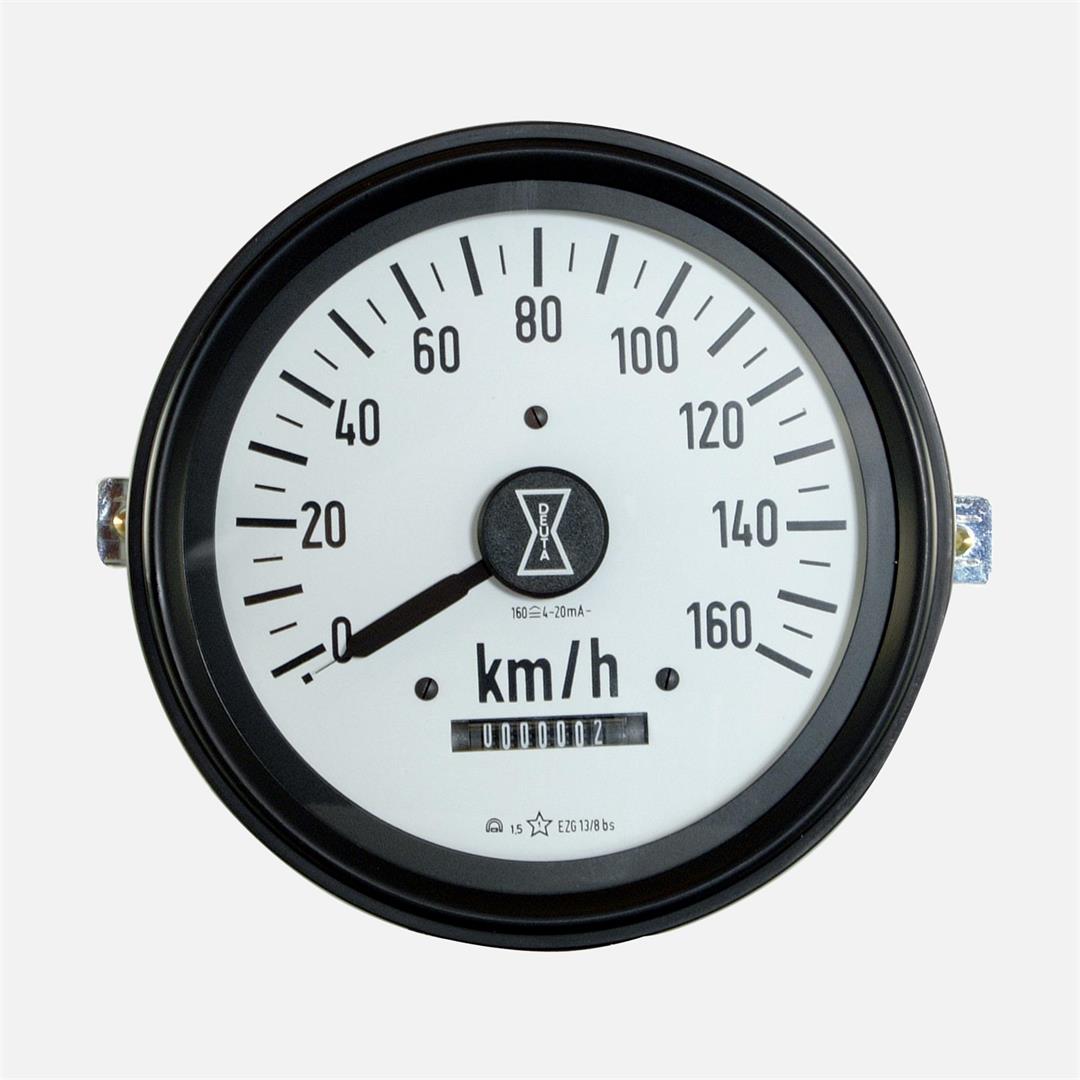

Additional functions (counters)
Company logos

DEUTA Indicator Units

Product brochure

pdfx, 920 KB
