XP20 Driving Simulator – Test benches for wheel speed sensors and pick-up sensors

XP20 – the comprehensive driving simulator

Test benches for railway operators, system integrators and after-sales service

The XP20 test benches open up new possibilities for professional sensor testing and system simulation in the field of railway technology. Designed for railway operators, system integrators and customer service staff, they enable realistic simulation of speed signals within train protection systems.

The XP20 drive units for wheel axle transducers and pick-up sensors form an integral part of a high-performance simulation environment for the system testing of speed sensors. Thanks to their compact design, tests can be carried out efficiently and in a practical manner directly on the vehicle.

Networked sensor testing and centralised control

DEUTA takes a holistic approach to driving simulation:

The XP20 family comprises test benches for:

Wheel axle sensors
Pick-up sensors

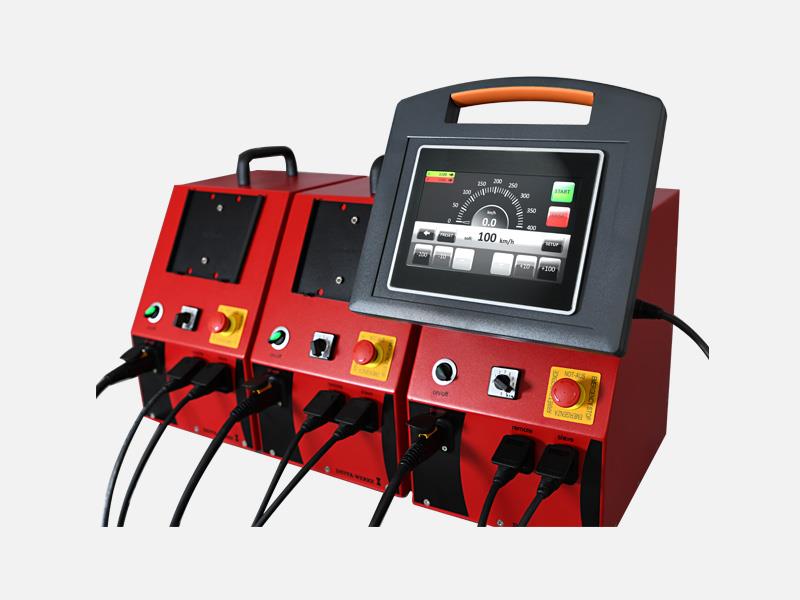

Up to nine XP20 units can be networked and controlled centrally. This enables not only the individual testing of sensors, but also the comprehensive testing of complete components within a simulation environment.

The result: increased test reliability, reproducible test conditions and maximum system transparency.

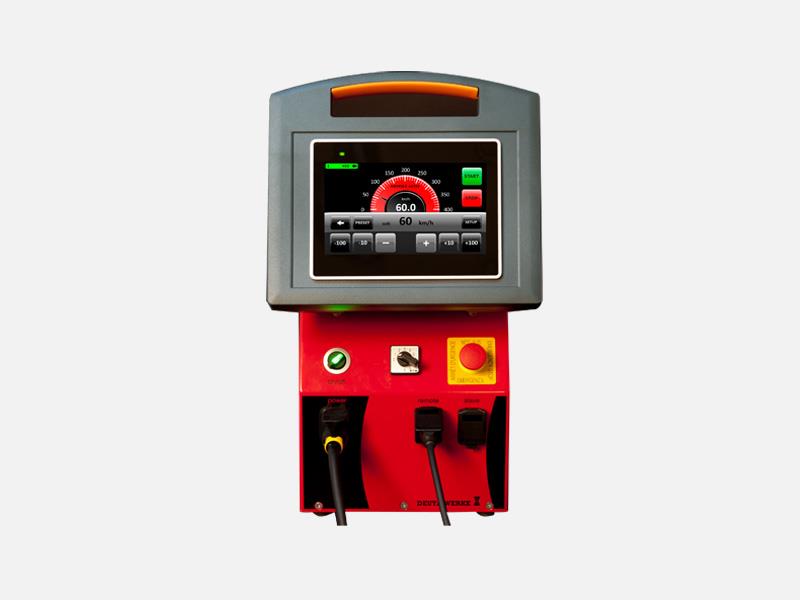

The XP20DR Set is a fully self-contained solution and includes:

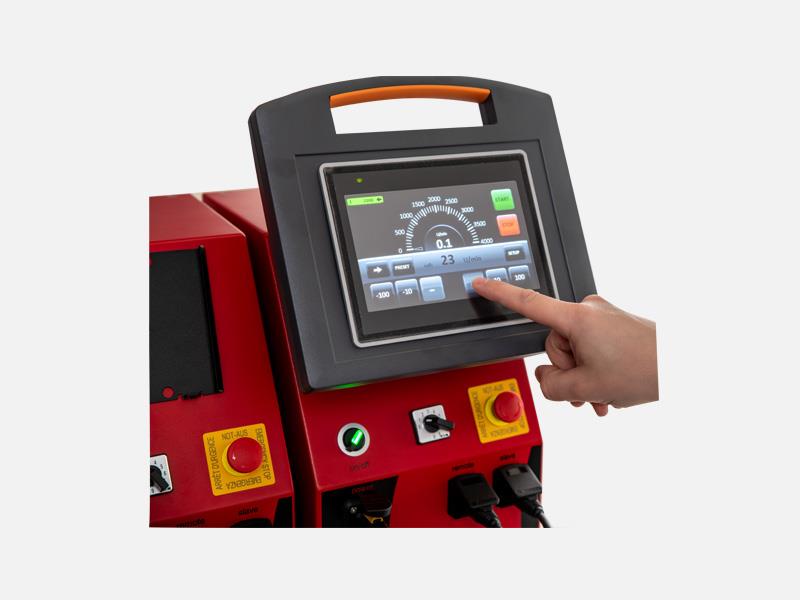

Mobile control terminal
5 m data connection cable
Software with integrated driving profile module

Ideal for flexible testing tasks and mobile applications.

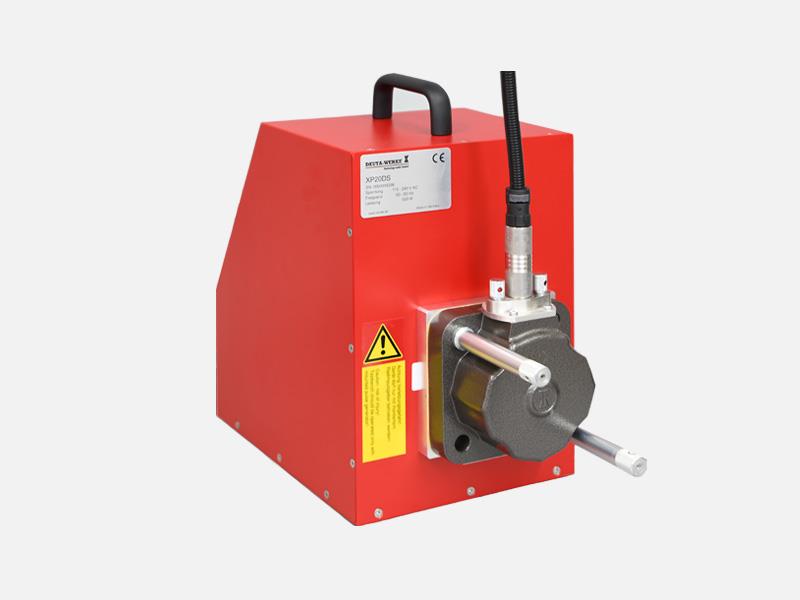

XP20DS – Service unit for vehicle inspections

The XP20DS model serves as a remote-controlled service unit for testing directly on the vehicle. It is supplied without its own control terminal.

It is controlled via:

the XP20R mobile control terminal
the software emulation of the XP20 user interface
or in indirect synchronous mode

XP20 drive units for system manufacturers:

System integration, implementation, analysis

Integration tests

In the laboratory and in the vehicle

Investigation of critical incidents

As part of safety-related assessments in the laboratory

Analyses

On faults and accident analyses in the laboratory

XP20 drive units for railway operators:

Maintenance, servicing, upkeep

Periodic inspections / Safety inspections

On the vehicle and in the workshop

Commissioning / Implementation Tests

Following maintenance and servicing

System and functional testing

Before installation and on the vehicle

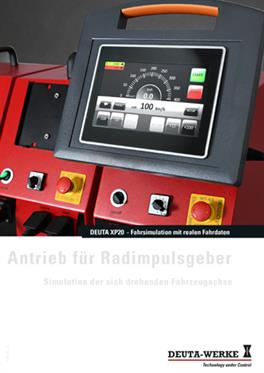

DEUTA XP20 Driving Simulator

Product brochure

pdfx, 920 KB
