D-EcoView®
Sustainable multifunctional terminal for modern rail vehicles
High performance, low power consumption and long-term availability – these three features characterise the D-EcoView® multifunction terminal.

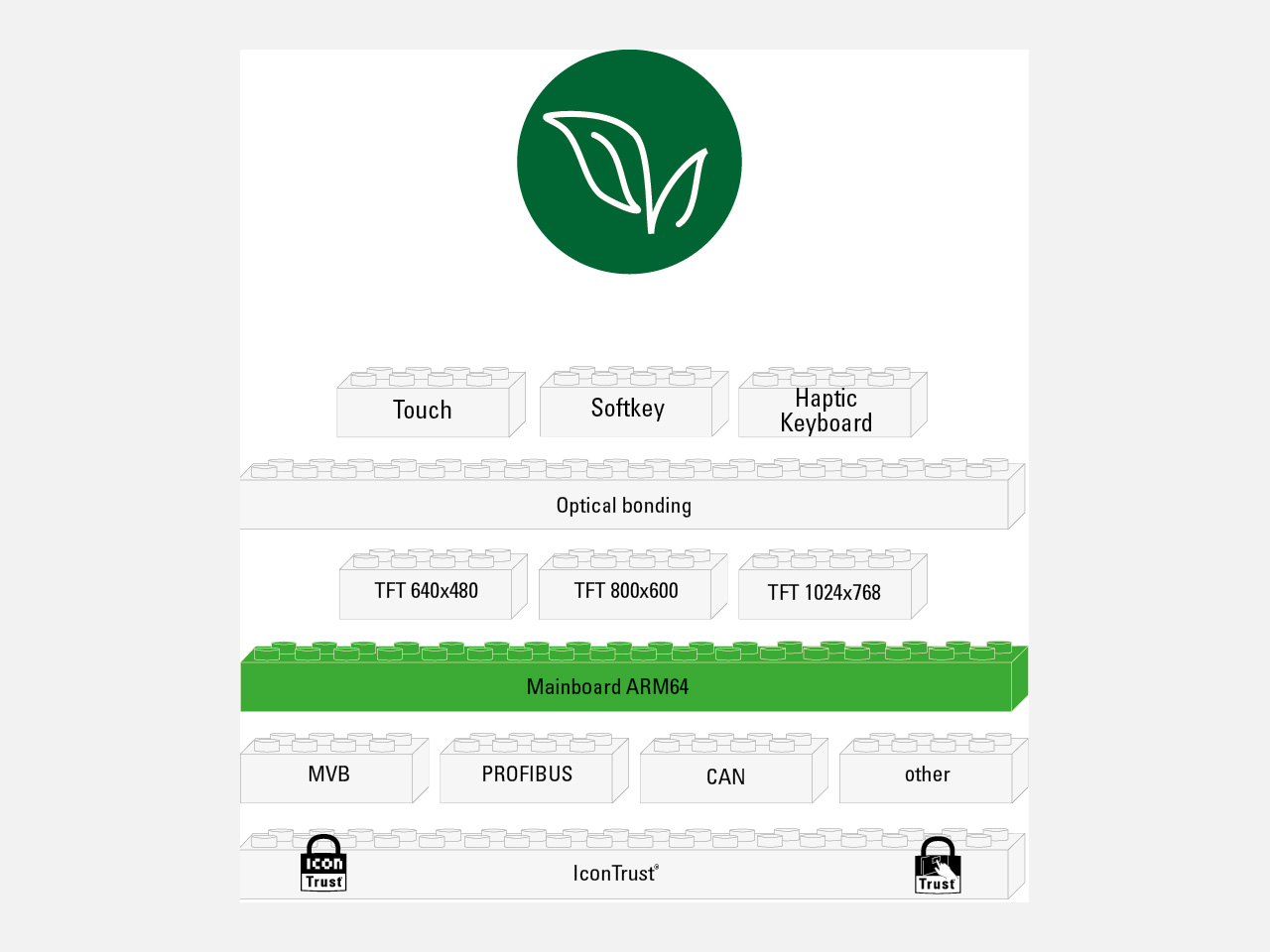

Modular system for maximum flexibility

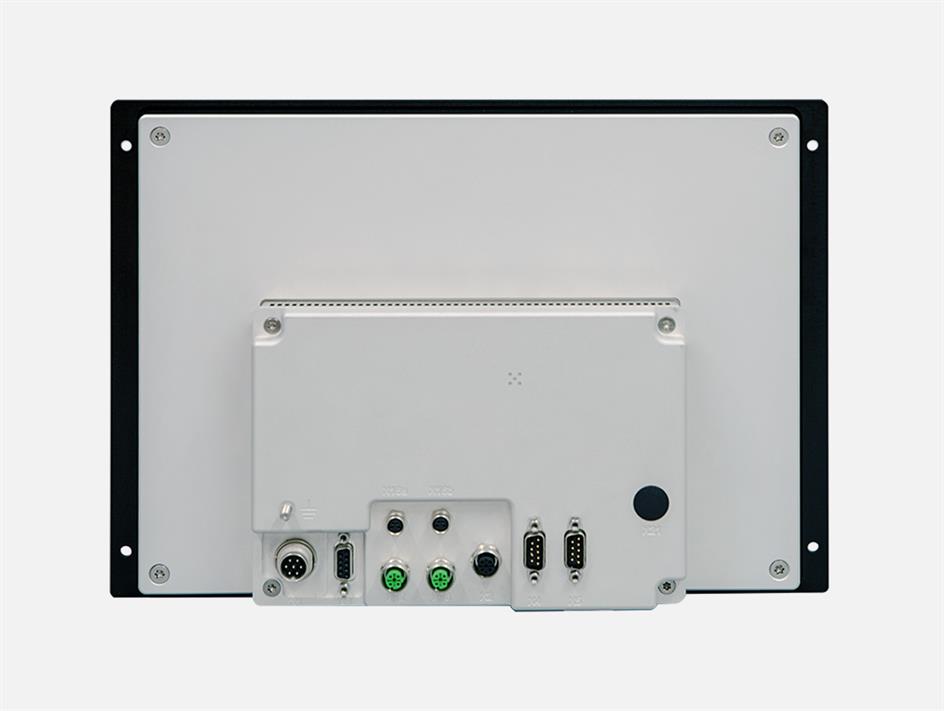

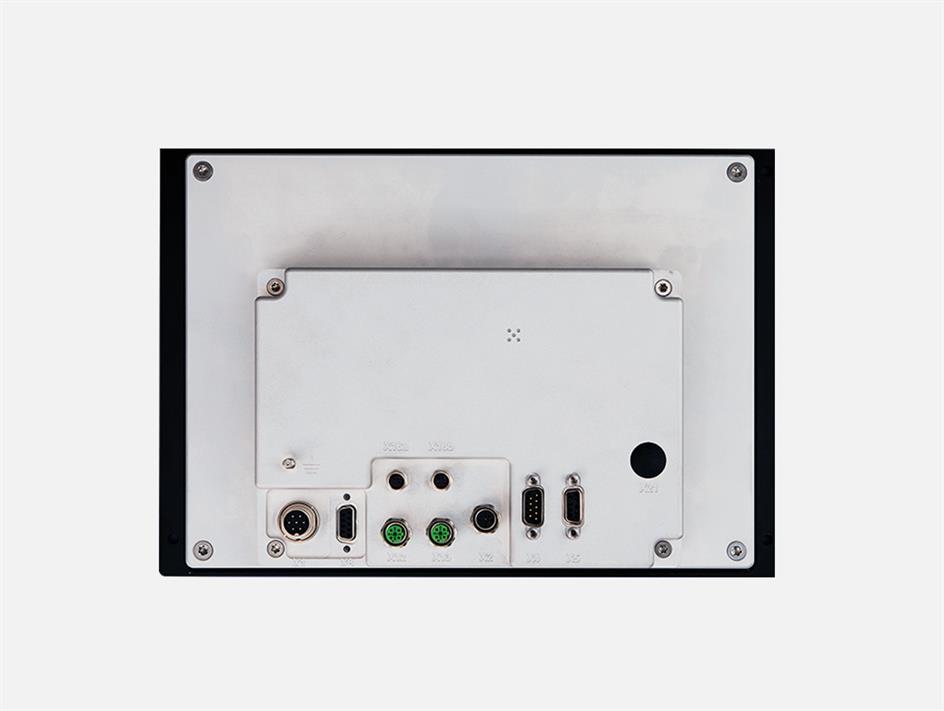

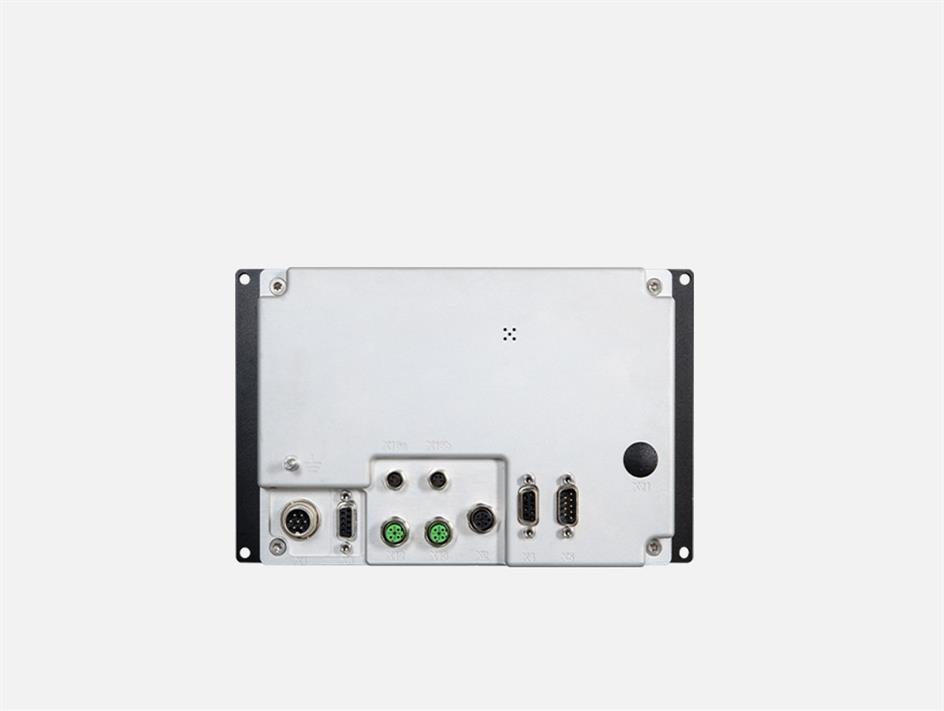

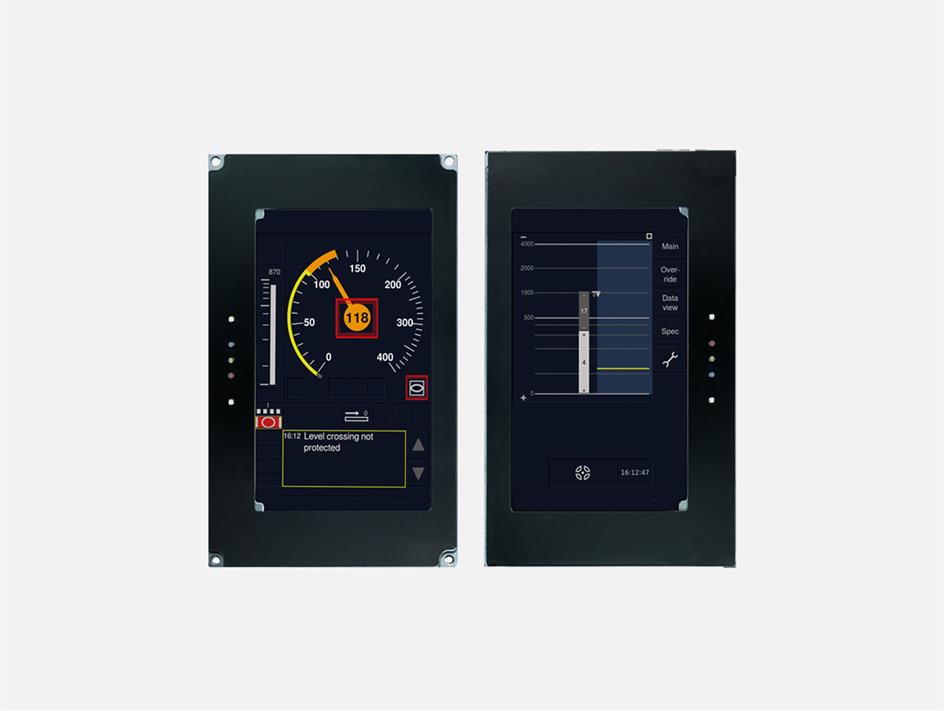

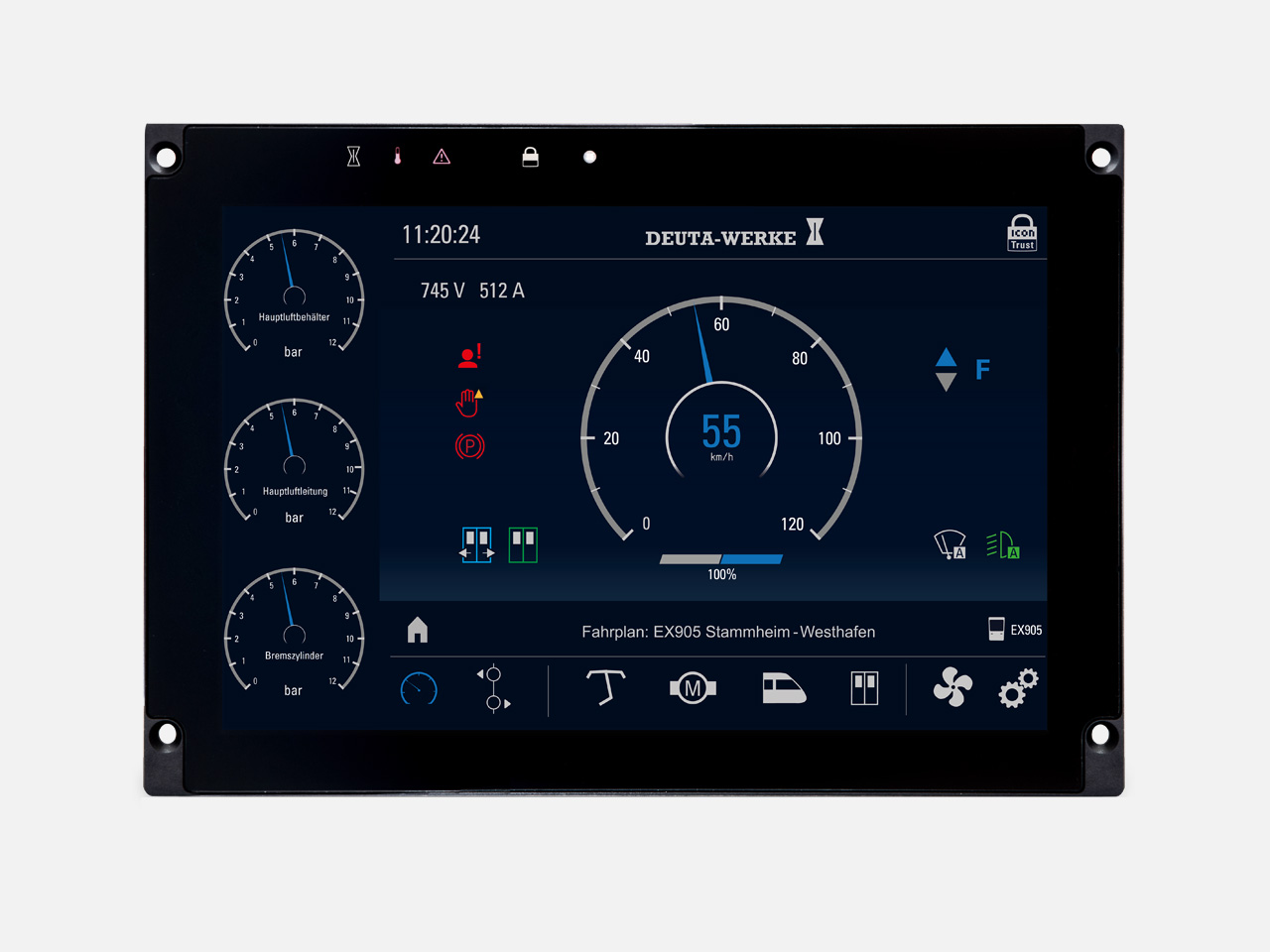

The D-EcoView® DMI is designed as a modular system: the ARM mainboard forms the basis for a wide range of terminal variants. The terminal is available in 8‘, 10.4’, 12.1‘ and optionally also in a redundant version. The interface layout remains the same across all sizes, which simplifies integration and replacement.
The IMX8X Quad Core A35 processor (64-bit) offers high performance, long-term availability and 30% lower power consumption compared to Intel Atom or AMD Fusion. At the same time, it provides advanced security features for critical applications.
D-EcoView® Trust – SIL2-compliant safety options
The D-EcoView® Trust terminals are available with optional safety functions: IconTrust® (safe display up to SIL2) and SelectTrust® (safe input up to SIL2) – for maximum operational safety in safety-critical applications.

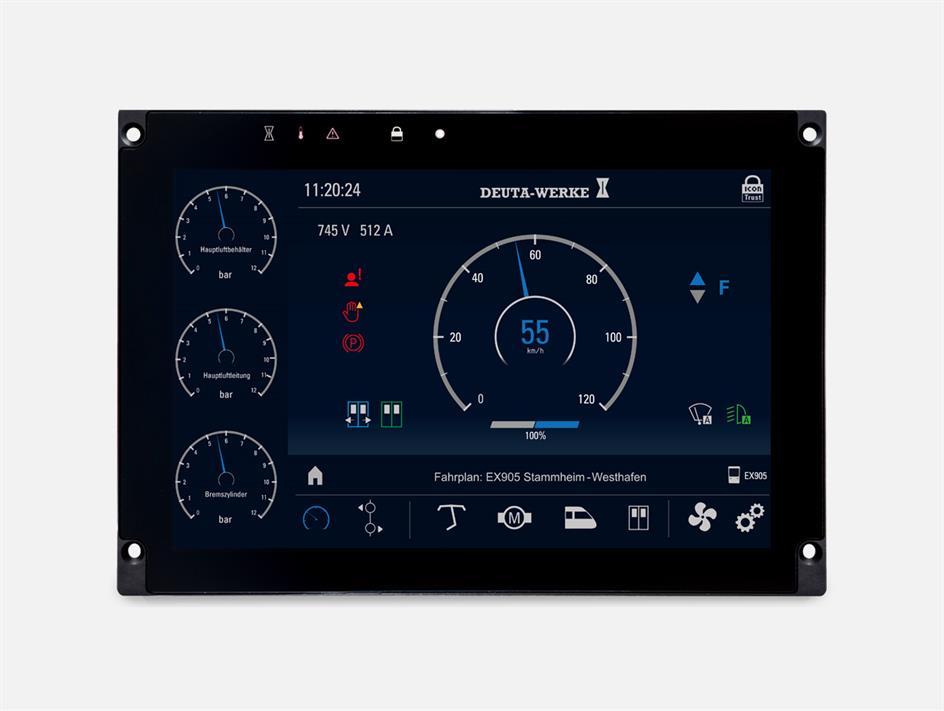

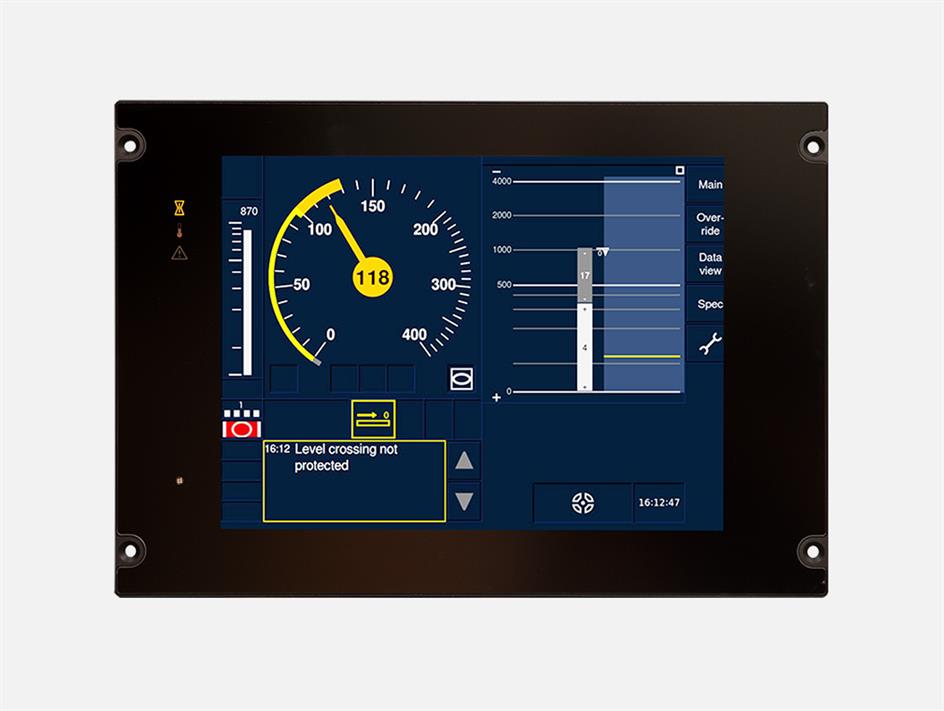

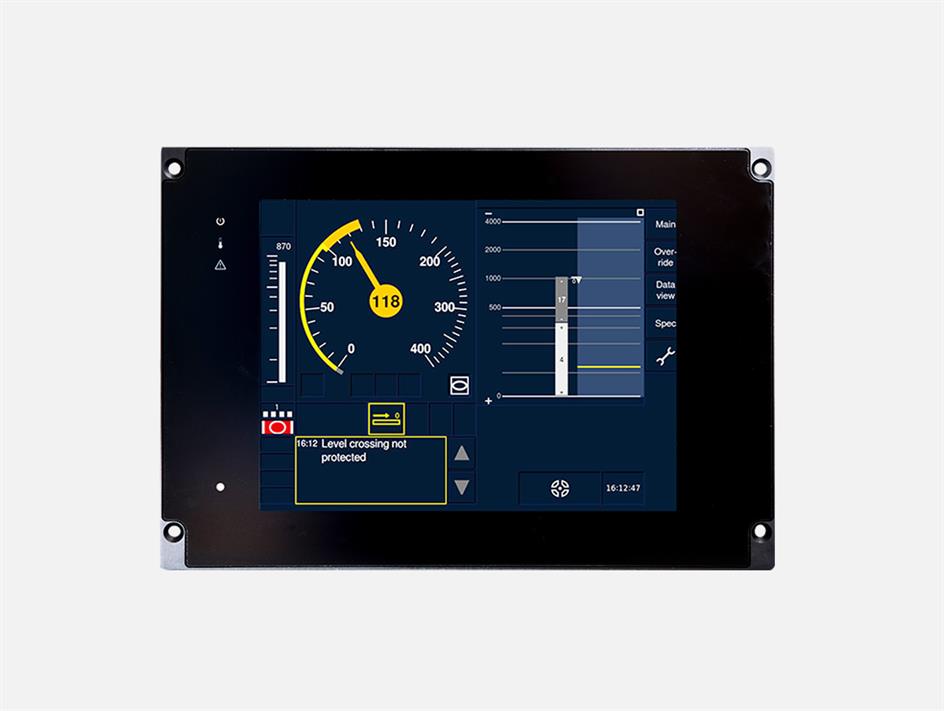

Optical bonding for optimum visibility
All D-EcoView® displays are optically bonded as standard at DEUTA. This finishing process optimises image quality and viewing angles, increases contrast and minimises reflections, ensuring that driving information is clearly visible in all lighting conditions.
